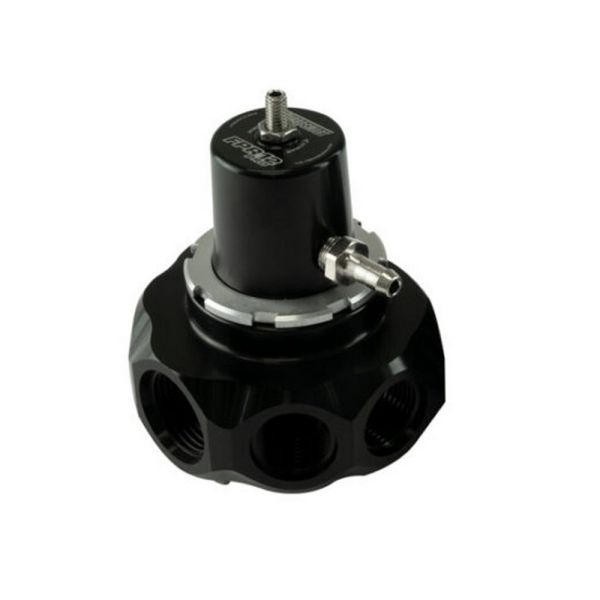

The Turbosmart FPR Pro 12 Series provides market leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -12 / 12AN fuel feed and -10 / 10AN return fittings.
Utilising Turbosmart's Stainless Steel Valve Seat & Milspec Diaphragm the FPR12 Pro Series is suitable for all Fuel types including Race Fuel and aggressive leaded fuels.
Turbosmart's FPR12 Pro Range includes 1 x 12AN inlet, 4 x 10AN outlet ports and a 10AN return and is available in Pro EFI (50psi to 130psi) and Pro M (50psi to 100psi) for Mechanical Pump Systems.Available in Pro (EFI) and Pro M (Mechanical Pump) - Suits Up to 3000HP Systems.FeaturesStainless Steel Valve SeatSuitable for all fuel types1:1 Class Leading Ratio & ResponseAdjustable Pressure1/8 NPT Pressure Sensor PortUnique Locking Collar DesignMilspec DiaphragmDetailed Specific Fuel Flow Data & SpecFPR12 Pro Series (EFI & Mechanical) Available In:FPR12 Pro 5 Port EFI Suit -12AN (Black) TS-0404-1252FPR12 Pro M 5 Port Mechanical Pump Suit -12AN (Black) TS-0404-1352Whats in the box?Fuel Pressure RegulatorMounting bracket2 x M5 Mounting ScrewsTurbosmart Decal
